Teknik Bilgiler

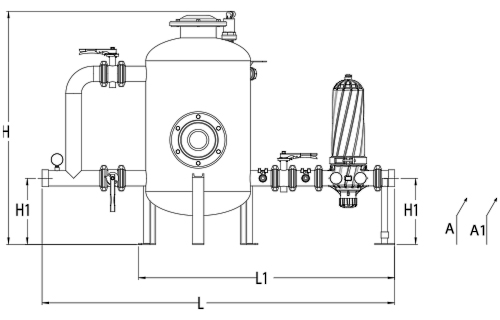

Kod
Code		 Açıklama
Description		 H
  (mm)		 H1
  (mm)		 L
(mm)		 L1
(mm)		 A
  (mm)		 A1
(mm)		 Tank Çapı
Tank Diameter
( inch/mm )		 Debi Max.
Max. Flow Rate
( m³/h )
MF7020/PD 2” Gravel Filtre ( Plastik Disk Filtre )
2” Sand Media Filter ( Plastic Disc Filter )		 1430 400 1780 380 555 345 18”/450 25
MF7025/PD 2 1/2” Gravel Filtre ( Plastik Disk Filtre )
2 1/2” Sand Media Filter ( Plastic Disc Filter )		 1340 380 1950 680 750 600 24”/600 30
MF7030/PD 3” Gravel Filtre ( Plastik Disk Filtre )
3” Sand Media Filter ( Plastic Disc Filter )		 1340 380 2020 680 750 600 24”/600 30
MF7030/PD/1 3” Gravel Filtre ( Plastik Disk Filtre )
  3” Sand Media Filter ( Plastic Disc Filter )		 1340 380 2020 680 1210 600 24”/600 40
MF7040/PD/1 4” Gravel Filtre ( Plastik Disk Filtre )
4” Sand Media Filter ( Plastic Disc Filter )		 1340 380 2120 680 1210 600 24”/600 40
